AC Input Module Power Requirements

E10000

540-3062 540-3441 540-4508

Operating Range

Nominal Voltage: 208, 220, 230, or 240 Volts AC
Operating Voltage: Single Phase 180-264 Volts AC
Frequency: 48-63 Hz
Current: 24 A maximum

AC Input Power Plug

U.S. power cords have a NEMA L6-30P input plug to two IEC320-C19 output plugs. International power cords have a Blue, IEC 309, 2-Pole, 3-Wire, 32 Amp input plug, with Ground at the 6-hour position to two IEC320-C19 output plugs.

AC Input Connectors

There are two IEC 320 C20 receptacles on the AC Input Module.

NEMA L6-30R / ANSI C73.75 230 Volt Power Receptacle

30 Amp, 250V, 2-pole, 3-wire, Single Phase, Grounded

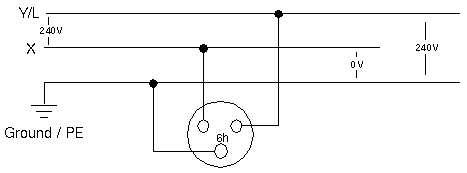

IEC 309 240 Volt Power Receptacle

32 Amp, 240V, 2-pole, 3-wire, Single Phase, Grounded
