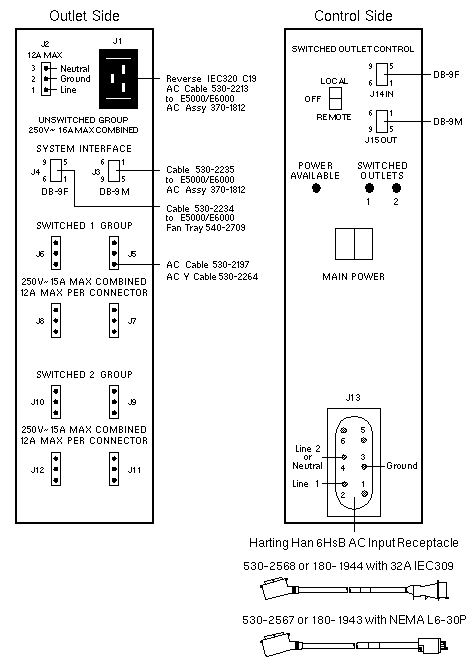

230V AC Power SequencerE5000 / E6000 / E5500 / E6500 / E10000
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 300-1403 |
|---|
| Electronic Manufacturing Systems Model 10 |
| J3 Remote Power Control | J4 Rack Fan Interface | |||
|---|---|---|---|---|
| PIN | DESCRIPTION | PIN | DESCRIPTION | |
| 1 | Expansion Rack Fan Fail | 1 | Rack Fan Fail | |
| 2 | Expansion Rack Fan Fail Return | 2 | Ground | |
| 3 | +5V Power On Control | 3 | Expansion Rack Fan Fail | |
| 4 | Remote In+ Keyswitch Closure+ |
4 | Not Used | |
| 5 | Remote In- Keyswitch Closure- |
5 | Not Used | |
| 6 | EPO+ Switch Closure+ | 6 | Expansion Rack Fan Fail Return | |
| 7 | Not Used | 7 | Not Used | |
| 8 | +5V Return | 8 | Not Used | |
| 9 | EPO- Switch Closure- | 9 | Expansion Rack Present In | |
| J14 Remote In | J15 Remote Out | ||||
|---|---|---|---|---|---|
| PIN | DESCRIPTION | PIN | DESCRIPTION | ||
| 1 | Not Used | 1 | Not Used | ||
| 2 | Not Used | 2 | Not Used | ||
| 3 | Expansion Rack Fan Fail Out to Master |
3 |
Expansion Rack Fan Fail In from Slave |
||
| 4 | Remote In+ Used as Slave |
4 | Relay N.O. Remote Out | ||
| 5 | Remote In- | 5 | Relay Com. Remote Out | ||
| 6 | Expansion Rack Fan Fail Return | 6 | Expansion Rack Fan Fail Return | ||
| 7 | Not Used | 7 | Not Used | ||
| 8 | Not Used | 8 | Not Used | ||
| 9 | Expansion Rack Present Out Connected to Pin-6 |
9 | Expansion Rack Present In | ||
 | | | |
|
