230 Volt AC Power Sequencer

370-1027	370-1155
Pulizzi Engineering PC874	Pulizzi Engineering PC874

Outlet Side

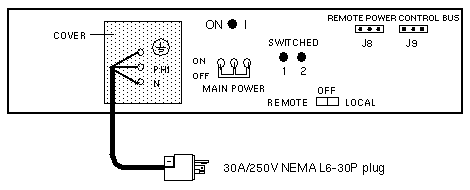

Control Side

Notes

1. Requires AC outlet NEMA L6-30R, 30A, 250V.
2. Any conversion to the Data Center Cabinet, including replacement of the AC Power Plug or AC Power Sequencer, voids all safety agency approvals.
3. The Switched 2 output of 370-1127 comes on after a 5-second delay.
4. The Switched 2 output of 370-1155 comes on after a 20-second delay.

References

1. Sun Full-Height Rack System Installation Manual, 800-1677.
2. Sun Rackmountable Fileservers Installation Manual, 800-1676.
3. Sun 900 Mbyte Disk Drive Installation Manual, 800-1036.
4. Sun 56-inch Data Center Cabinet and Data Center Expansion Cabinet Installation Manual, 800-3242.
5. Sun 56-inch Expansion Cabinet Installation Manual, 800-5936.
6. Sun 56-inch Cabinet Service Manual, 800-6371.
