230 Volt AC Power Sequencer

300-1263
Sherwood Enterprises

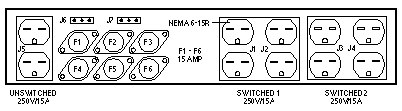

Outlet Side

Control Side

Notes

1. Requires AC outlet NEMA L6-30R, 30A, 250V.
2. Any conversion to the Data Center Cabinet, including replacement of the AC Power Plug or AC Power Sequencer, voids all safety agency approvals.
3. The Switched 2 output comes on after a 20-second delay.
4. The 300-1263 replaced 370-1155-02 in February 1996.

References

1. Sun 56-inch Expansion Cabinet Installation Manual, 800-5936.
2. Sun 56-inch Expansion Cabinet Service Manual, 800-6371.
