Power

4.28 Amps @ +5Vdc

21.40 Watts

Notes

1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
2. If two modules are installed, the minimum OS is Solaris 2.1.
3. Mixing different module types is not supported.
4. Set the SS10 clock speed to 80MHz.
5. The 501-2270-04 is supported in the SS1000 and SC2000.
6. This module is not compatible with 50MHz Sun-4d Control Boards.

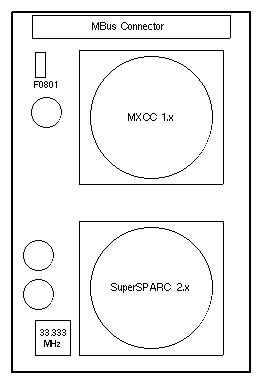

7. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

Notes

1. This module was used on early production SC2000 systems only.
2. The 66MHz Control Board 501-1671-04 is required.
3. This SM41 module is not compatible with SC2000 Control Board 501-1671-05, 501-2335, 501-2406, 501-2666, or 501-2674.
4. Mixing different module types is not supported.

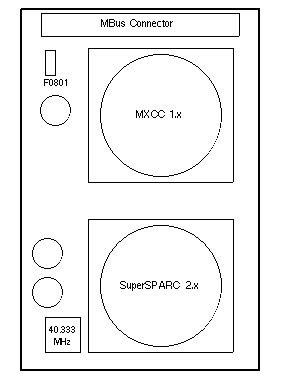

5. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

Power

4.28 Amps @ +5Vdc

21.40 Watts

Notes

1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
2. If two modules are installed, the minimum OS is Solaris 2.1.
3. Mixing different module types is not supported.
4. Set the SS10 clock speed to 80MHz.
5. This module is not compatible with the 50MHz SC2000 Control Board.
6. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.
