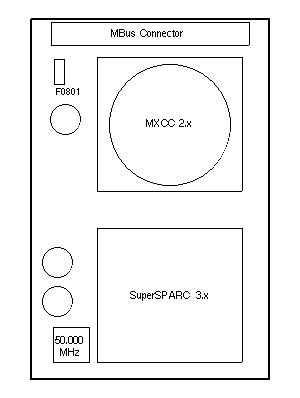

SM51 SuperSPARC Module

SS10 / SS630 / SS670 / SS690 / SS1000
Option 1166

501-2360
50MHz

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. Set the SS10 clock speed to 80MHz.
  5. The maximum MBus and XDBus speed of the MXCC is 40MHz.
  6. This module is not compatible with the 50MHz SS1000 Control Board.
  7. The SS600MP requires Boot PROM 2.10.
  8. The SS1000 requires Boot PROM 2.11.
  9. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

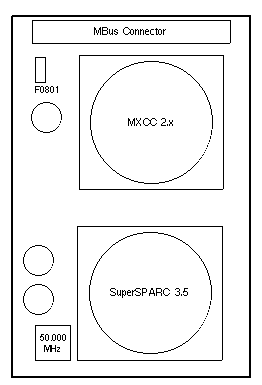

SM51 SuperSPARC Module

SS10 / SS630 / SS670 / SS690 / SS1000

501-2387
50MHz

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. The 501-2387-01 is for Sun internal use only.
  5. The 501-2387-01 is tested for operation at room temperature only.
  6. Set the SS10 clock speed to 80MHz.
  7. The maximum MBus and XDBus speed of the MXCC is 40MHz.
  8. This module is not compatible with the 50MHz SS1000 Control Board.
  9. The SS600MP requires Boot PROM 2.10.
  10. The SS1000 requires Boot PROM 2.11.
  11. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

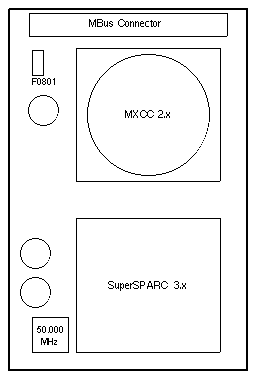

SM51 SuperSPARC Module

SS10 / SS10SX / SS20 / SS630 / SS670 / SS690
Option 1163

501-2607
50MHz

Notes

  1. Solaris 1.1.1 Version A is not supported.
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. Set the SS10 clock speed to 80MHz.
  5. The maximum MBus speed of the MXCC is 40MHz.
  6. The SS600MP requires Boot PROM 2.10.
  7. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

SM51 SuperSPARC Module

SS10 / SS10SX / SS630 / SS670 / SS690 / SS1000
Option 1166

501-2562-01
50MHz

Notes

  1. Solaris 1.1.1 Version A is not supported.
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. Set the SS10 clock speed to 80MHz.
  5. The maximum MBus and XDBus speed of the MXCC is 40MHz.
  6. This module is not compatible with the 50MHz SS1000 Control Board.
  7. The SS600MP requires Boot PROM 2.10.
  8. The SS1000 requires Boot PROM 2.11.
  9. Do NOT use the 501-2562-01 in the SS20.
  10. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

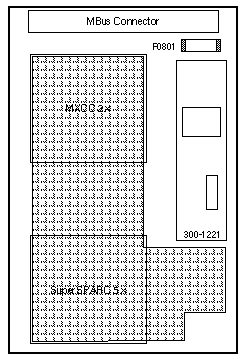

SM51 SuperSPARC Module

SS10 / SS10SX / SS20 / SS630 / SS670 / SS690 / SS1000
Options 1166 / 1169 / 1173

501-2562-02
50MHz

Notes

  1. Solaris 1.1.1 Version A is not supported.
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. Set the SS10 clock speed to 80MHz.
  5. The maximum MBus and XDBus speed of the MXCC is 40MHz.
  6. This module is not compatible with the 50MHz SS1000 Control Board.
  7. The SS600MP requires Boot PROM 2.10.
  8. The SS1000 requires Boot PROM 2.11.
  9. Do NOT use the 501-2562-01 in the SS20.
  10. Surface mounted Fuse F0801 is not field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

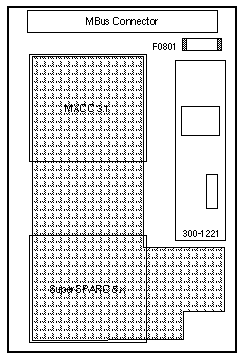

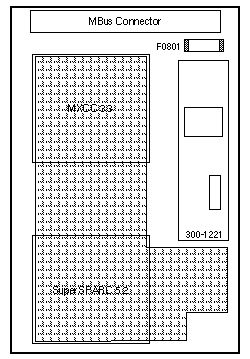

SM51 SuperSPARC Module

SS10 / SS10SX / SS20 / SS1000

501-2617
50MHz

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. The maximum MBus and XDBus speed of the MXCC is 40MHz.
  5. This module is not compatible with the 50MHz SS1000 Control Board.
  6. The 501-2617 is not supported in the SPARCserver 600MP.
  7. The SS1000 requires OBP 2.18 to support MXCC 3.x.
  8. The 22W DC-DC Power Supply is not field replaceable.
  9. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

SM51 SuperSPARC Module

SS10 / SS10SX / SS20 / SS630 / SS670 / SS690 / SS1000
Options 1169 / 1173

501-2707
50MHz

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. The maximum MBus and XDBus speed of the MXCC is 40MHz.
  5. This module is not compatible with the 50MHz SS1000 Control Board.
  6. The 22W DC-DC Power Supply is not field replaceable.
  7. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.

SM51 SuperSPARC Module

SS10 / SS10SX / SS20 / SS1000

501-2754
50MHz

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. The maximum MBus and XDBus speed of the MXCC is 40MHz.
  5. This module is not compatible with the 50MHz SS1000 Control Board.
  6. The SS1000 requires OBP 2.18 to support MXCC 3.x.
  7. The 22W DC-DC Power Supply is not field replaceable.
  8. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

Reference

SuperSPARC Module Installation Guide, 801-2035.
