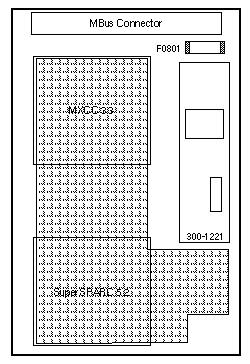

SM61-2 SuperSPARC Module

SC2000
Option 1167

501-2543
60MHz

Notes

  1. The minimum operating system is Solaris 2.3.
  2. The SC2000 requires OBP 2.18 to support MXCC 3.x.
  3. Mixing different module types is not supported.
  4. The maximum XDBus speed of the MXCC is 50MHz.
  5. System Board 501-1866-xx can only access 1MB of cache.
  6. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.

SM61-2 SuperSPARC Module

SC2000
Option 1167

501-2757
60MHz

Notes

  1. The minimum operating system is Solaris 2.3.
  2. The SC2000 requires OBP 2.18 to support MXCC 3.x.
  3. Mixing different module types is not supported.
  4. The maximum XDBus speed of the MXCC is 50MHz.
  5. System Board 501-1866-xx can only access 1MB of cache.
  6. The 8A Fuse 150-2246-01 at F0801 is field replaceable.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. SuperSPARC Module Installation Guide, 802-1372.
