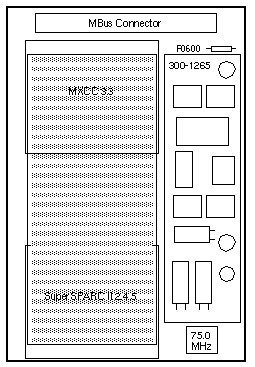

SM71 SuperSPARC II Module

SS10 / SS20
Option 1175

501-2520
75MHz

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 HW: 8/94.
  2. The SS10 and SS20 require boot PROM 2.22.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-2520 is not compatible with the Sun4d XDBus.
  6. The 15A Fuse at F0600 is not field replaceable.

References

  1. SPARCstation 20 SuperSPARC II Module Upgrade, 802-2566.
  2. SPARCstation 10 SuperSPARC II Module Upgrade, 802-2567.
  3. SPARCstation 20 SuperSPARC II Module X-Option, 802-2568.
  4. SPARCstation 10 SuperSPARC II Module X-Option, 802-2569.
  5. Product Note: SPARCstation 20 Software, 802-2942.

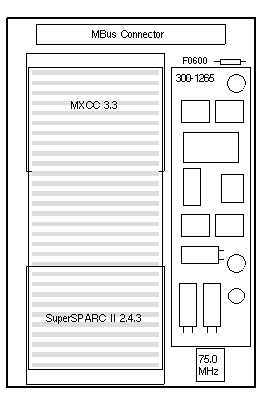

SM71 SuperSPARC II Module

SS10 / SS20
Option 1175

501-2904
75MHz

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 HW: 8/94.
  2. The SS10 and SS20 require boot PROM 2.22.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-2904 is not compatible with the XDBus.
  6. The 15A Fuse at F0600 is not field replaceable.

References

  1. SPARCstation 20 SuperSPARC II Module Upgrade, 802-2566.
  2. SPARCstation 10 SuperSPARC II Module Upgrade, 802-2567.
  3. SPARCstation 20 SuperSPARC II Module X-Option, 802-2568.
  4. SPARCstation 10 SuperSPARC II Module X-Option, 802-2569.
  5. Product Note: SPARCstation 20 Software, 802-2942.

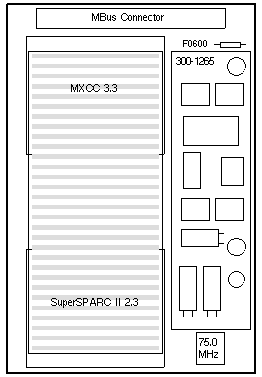

SM71 SuperSPARC II Module

SS10 / SS20
Option 1175

501-2940
75MHz

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 HW: 8/94.
  2. The SS10 and SS20 require boot PROM 2.22.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-2940 is not compatible with the XDBus.
  6. The 15A Fuse at F0600 is not field replaceable.

References

  1. SPARCstation 20 SuperSPARC II Module Upgrade, 802-2566.
  2. SPARCstation 10 SuperSPARC II Module Upgrade, 802-2567.
  3. SPARCstation 20 SuperSPARC II Module X-Option, 802-2568.
  4. SPARCstation 10 SuperSPARC II Module X-Option, 802-2569.
  5. Product Note: SPARCstation 20 Software, 802-2942.

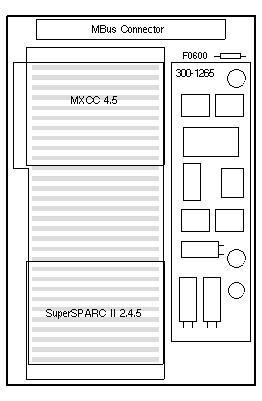

SM71 SuperSPARC II Module

SS10 / SS20
Option 1175

501-3001
75MHz

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 HW: 8/94.
  2. The SS10 and SS20 require boot PROM 2.22.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-3001 is not compatible with the XDBus.
  6. The 15A Fuse at F0600 is not field replaceable.

References

  1. SPARCstation 20 SuperSPARC II Module Upgrade, 802-2566.
  2. SPARCstation 10 SuperSPARC II Module Upgrade, 802-2567.
  3. SPARCstation 20 SuperSPARC II Module X-Option, 802-2568.
  4. SPARCstation 10 SuperSPARC II Module X-Option, 802-2569.
  5. Product Note: SPARCstation 20 Software, 802-2942.

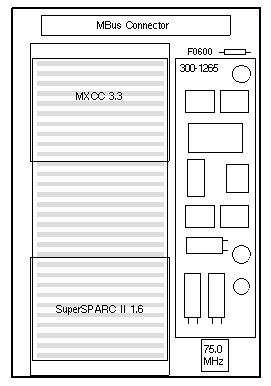

SM71 SuperSPARC II Module

SS10 / SS20
Option 1175

501-2925
75MHz

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 HW: 8/94.
  2. The SS10 and SS20 require boot PROM 2.22.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-2925 is not tested or approved for use in the SS1000.
  6. The 15A Fuse at F0600 is not field replaceable.

References

  1. SPARCstation 20 SuperSPARC II Module Upgrade, 802-2566.
  2. SPARCstation 10 SuperSPARC II Module Upgrade, 802-2567.
  3. SPARCstation 20 SuperSPARC II Module X-Option, 802-2568.
  4. SPARCstation 10 SuperSPARC II Module X-Option, 802-2569.
  5. Product Note: SPARCstation 20 Software, 802-2942.

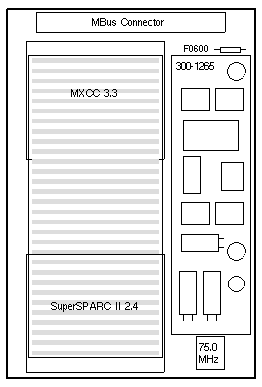

SM71 SuperSPARC II Module

SS10 / SS20

501-4130
75MHz

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 HW: 8/94.
  2. The SS10 and SS20 require boot PROM 2.22.
  3. Mixing different module types is not supported.
  4. The maximum MBus speed of the MXCC is 50MHz.
  5. The 501-4130 is not compatible with the XDBus.
  6. The 15A Fuse at F0600 is not field replaceable.

References

  1. SPARCstation 20 SuperSPARC II Module Upgrade, 802-2566.
  2. SPARCstation 10 SuperSPARC II Module Upgrade, 802-2567.
  3. SPARCstation 20 SuperSPARC II Module X-Option, 802-2568.
  4. SPARCstation 10 SuperSPARC II Module X-Option, 802-2569.
  5. Product Note: SPARCstation 20 Software, 802-2942.
