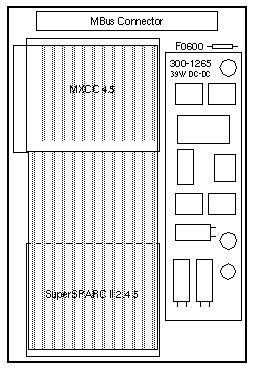

SM81-2 SuperSPARC II Module

SC2000
Option 1178

501-3022
85MHz

Notes

  1. The minimum operating system is Solaris 2.4 and Patch >=101945-35.
  2. Patch 101945-35 enables the Multiple Command Mode.
  3. Patch 101945-35 fixes a watchdog reset problem that may occur when more than 12 modules are installed.
  4. Solaris 2.4 requires Patch >=102001-08 if SunFastEthernet is installed.
  5. SC2000 Boot PROM 2.23 is required on all system boards.
  6. Mixing different module types is not supported.
  7. The maximum XDBus speed of the MXCC is 50MHz.
  8. The 15A Fuse at F0600 is not field replaceable.

References

  1. SuperSPARC Module Installation Guide, 802-1372.
  2. SuperSPARC Module Product Note, 801-5015.

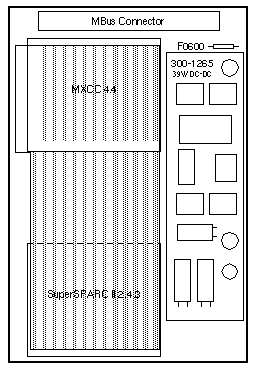

SM81-2 SuperSPARC II Module

SC2000
Option 1178

501-3098
85MHz

Notes

  1. The minimum operating system is Solaris 2.4 and Patch >=101945-35.
  2. Patch 101945-35 enables the Multiple Command Mode.
  3. Patch 101945-35 fixes a watchdog reset problem that may occur when more than 12 modules are installed.
  4. Solaris 2.4 requires Patch >=102001-08 if SunFastEthernet is installed.
  5. SC2000 Boot PROM 2.23 is required on all system boards.
  6. Mixing different module types is not supported.
  7. The maximum XDBus speed of the MXCC is 50MHz.
  8. The 15A Fuse at F0600 is not field replaceable.

References

  1. SuperSPARC Module Installation Guide, 802-1372.
  2. SuperSPARC Module Product Note, 801-5015.

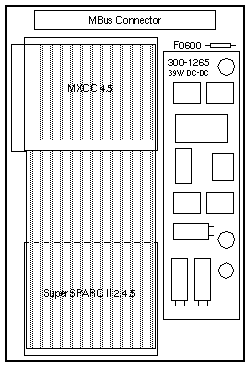

SM81-2 SuperSPARC II Module

SC2000
Option 1178

501-4780
85MHz

Notes

  1. The minimum operating system is Solaris 2.4 and Patch >=101945-35.
  2. Patch 101945-35 enables the Multiple Command Mode.
  3. Patch 101945-35 fixes a watchdog reset problem that may occur when more than 12 modules are installed.
  4. Solaris 2.4 requires Patch >=102001-08 if SunFastEthernet is installed.
  5. SC2000 Boot PROM 2.23 is required on all system boards.
  6. Mixing different module types is not supported.
  7. The maximum XDBus speed of the MXCC is 50MHz.
  8. The 15A Fuse at F0600 is not field replaceable.

References

  1. SuperSPARC Module Installation Guide, 802-1372.
  2. SuperSPARC Module Product Note, 801-5015.

SM81-2 SuperSPARC II Module

SC2000

501-5056
85MHz

Notes

  1. The minimum operating system is Solaris 2.4 and Patch >=101945-35.
  2. Patch 101945-35 enables the Multiple Command Mode.
  3. Patch 101945-35 fixes a watchdog reset problem that may occur when more than 12 modules are installed.
  4. Solaris 2.4 requires Patch >=102001-08 if SunFastEthernet is installed.
  5. SC2000 Boot PROM 2.23 is required on all system boards.
  6. Mixing different module types is not supported.
  7. The maximum XDBus speed of the MXCC is 50MHz.
  8. The 15A Fuse at F0600 is not field replaceable.

References

  1. SuperSPARC Module Installation Guide, 802-1372.
  2. SuperSPARC Module Product Note, 801-5015.
