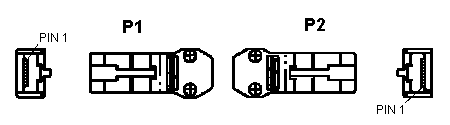

FCAL (Copper): HSSDC to HSSDC

530-2949, 530-2950 & 530-2951

P1
HSSDC		 SIGNAL P2
HSSDC		 SIGNAL
1 TRANSMIT + 8 RECEIVE +
3 TRANSMIT - 6 RECEIVE -
8 RECEIVE + 1 TRANSMIT +
6 RECEIVE - 3 TRANSMIT -
2 NC 2 NC
4 NC 4 NC
5 NC 5 NC
7 NC 7 NC
SHELL SHELL
