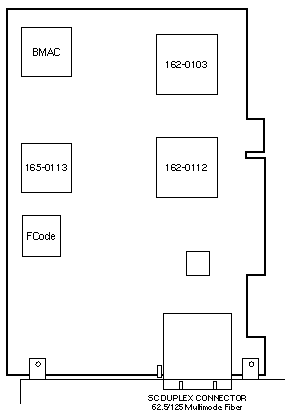

FDDI/P SAS 1.0/2.0/3.0

A16 / A20 / A21 / A22 / A23 / A25 / A26
A27 / A28 / A29 / A33 / A34 / A36
Netra t 1100 / Netra t 1120 / Netra t 1125
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Options 1035 / 1152

370-2811
Network Peripherals 105-0174
5V 32Bit 33MHz

Notes

  1. The minimum FDDI/P 1.0 OS is Solaris 2.5.1 Hardware: 4/97.
  2. Option 1152 includes FDDI 2.0 software for Solaris 7.
  3. The Solaris 8 Supplement includes FDDI 3.0 software.
  4. The final operating system is Solaris 9.
  5. The 3 Meter cable has a duplex MIC connector (male) on one end and a duplex SC connector (male) on the other end.
  6. Cable assembly 537-1009 includes type A, AM, B, BM, and S keys and a duplex MIC to MIC (female to female) coupler.

References

  1. FDDI/P Adapter Users Guide, 805-0809.
  2. FDDI/P 2.0 Users Guide, 805-5449.
