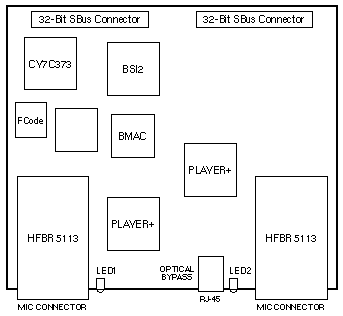

FDDI/S DAS 4.0

Sun-4/15/30 / SS2 / SS5 / SS20 / SS600
SS1000 / SC2000 / A14
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Option 1024

370-2239 605-1560 370-2716 605-1565
NPI 105-0163 HW/SW Assy NPI 105-0163 HW/SW Assy


LEDs Off Driver not loaded
Red LED Driver loaded
Interfaces not configured (ifconfig down)
Amber LED Interfaces configured (ifconfig up)
Not connected to active FDDI network
Green LED Connected to active FDDI network

Notes

  1. The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
  2. The FDDI/S is compatible with FDDI 4.0 and 5.0.
  3. The FDDI/S is not compatible with FDDI 1.0, 2.0, or 3.0.

Reference:

FDDI 4.0 User's Guide, 802-5144.
