Network Terminal Server

Codename: Terminator

Option 2064

370-1574

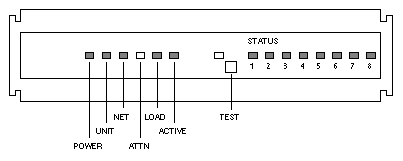

Front View

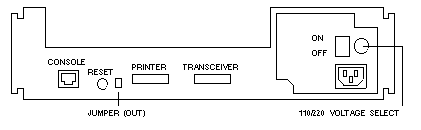

Rear View

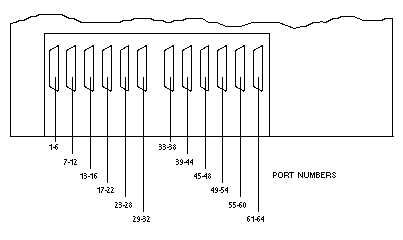

TopView

Notes

  1. Use Console Cable 370-1607-01.
  2. Network Terminal Software 1.0 is equivalent to Xylogics release 7.0.
  3. Sun discontinued the NTS hardware and software in May 1997.

Reference

Hardware Installation Guide, 801-3990.

Network Terminal Server

Codename: Terminator

Option 2064 / 2065

370-2310

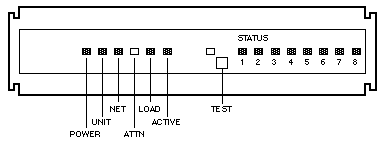

Front View

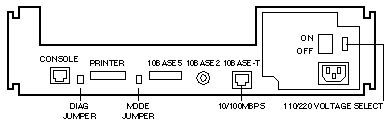

Rear View

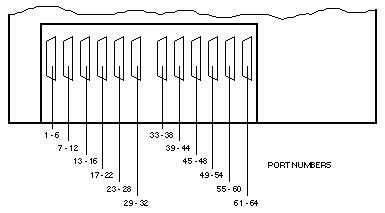

TopView

Notes

  1. Use Console Cable 370-1607-01.
  2. Network Terminal Software 1.0 is equivalent to Xylogics release 7.0.
  3. The 10BASE2 and 10BASE-T ports are not supported by NTS 1.0.
  4. Sun discontinued the NTS hardware and software in May 1997.

Reference

Hardware Installation Guide, 801-3990.
