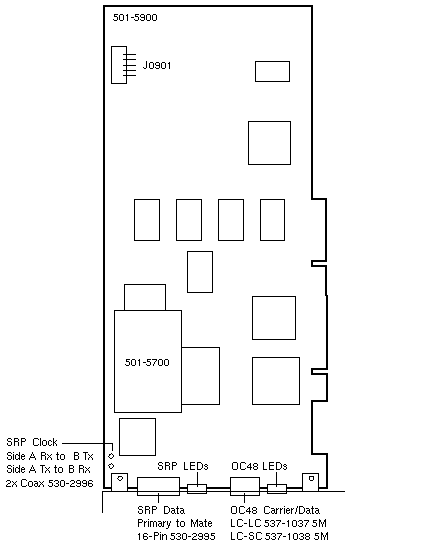

OC48 Packet Over Sonet

Codename: Apollo

Sun Fire V480 / Sun Fire V880

Option 4810

540-4721
501-5700 + 501-5900
3.3V 32/64Bit 33/66MHz

Notes

  1. The minimum operating system is Solaris 8 10/01.
  2. The SRP LEDs are not active when the OC48 is used in PPP mode.
  3. SRP mode requires a Primary OC48 and a Mate OC48.
  4. Side A (Primary) is connected to Side B (Mate) in SRP mode.
  5. OC48 must be installed in a 66MHz slot on the Sun Fire V880, which limits the quantity to two per server.

Reference

OC48 Installation and User's Guide, 806-6323.
