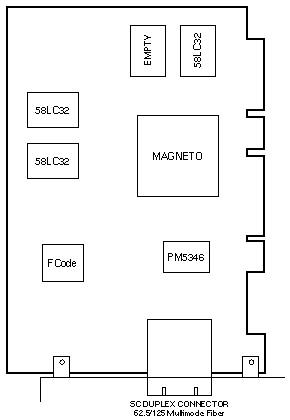

SunATM-155/MFiber 3.0/4.0/5.0

Codename: Magneto

A16 / A20 / A21 / A22 / A23 / A25 / A26
A27 / A28 / A29 / A33 / A34 / A35 / A36 / A41
Netra t1 / Netra T1 / Netra 20
Sun Fire V120 / Netra 120
Netra t 1100/1120/1125 / Netra t 1400/1405 / Netra ft 1800
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500 / E10000
Sun Fire 4800 / 4810 / 6800
Sun Fire V480 / Sun Fire V880
Sun Fire 12K / Sun Fire 15K

Options 1066 / 1157 / 6932

501-3028 540-3984
3.3/5V 32/64Bit 33/66MHz Netra ft 1800 FRU
w 501-3028

Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
  2. The SunATM 3.0 software is on CD-ROM 704-6006-10.
  3. The SunATM 3.0 software Update 1 is on CD-ROM 704-6006-11.
  4. Option 1157 includes ATM 4.0 software for Solaris 7.
  5. The Solaris 8 Supplement includes ATM 5.0 software.
  6. On a Sun Blade 1000, do not install in PCI Slot 1 (66MHz). Install only in Slot 2, 3, or 4 (33MHz).

References

  1. ATM 3.0 Installation and Users Guide, 805-0331.
  2. ATM 4.0 Installation and Users Guide, 805-6552.
