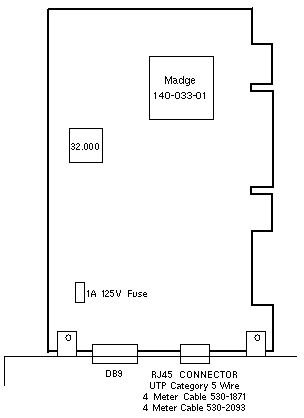

Token Ring Interface (TRI/P)

A16 / A20 / A21 / A22 / A23 / A25 / A26 / A34
Netra t 1100 / Netra t 1120 / Netra t 1125
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Options 1039 / 1154

375-0001
Madge Presto PCI
4/16 MBit/Sec
3.3/5V 32Bit 33MHz

Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
  2. Option 1154 includes TRI/P 4.0 software for Solaris 7.
  3. TRI/P is not compatible with PCI Slot 4 on Ultra 80 CPU <=501-5168-14.

References

  1. TRI/P Installation Guide, 805-1077.
  2. TRI/P 4.0 Installation Guide, 805-6905.
  3. TRI/P 5.0 Installation Guide, 806-4204.
  4. Ultra 80 Product Note, 806-1457.
  5. Enterprise 420R Product Note, 806-1082.

Token Ring Interface (TRI/P)

A16 / A20 / A21 / A22 / A23 / A25 / A26 / A27 / A28 / A33 / A34 / A35 / A36
Netra t 1100 / Netra t 1120 / Netra t 1125
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Option 2154

375-0073
Madge Presto PCI
4/16 MBit/Sec
3.3/5V 32Bit 33MHz

Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
  2. Option 2154 includes TRI/P 5.0 software for Solaris 8.
  3. TRI/P is not compatible with PCI Slot 4 on Ultra 80 CPU <=501-5168-14.

References

  1. TRI/P 5.0 Installation Guide, 806-4204.
  2. Ultra 80 Product Note, 806-1457.
  3. Enterprise 420R Product Note, 806-1082.
