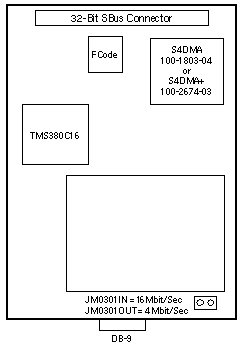

Token Ring Interface (TRI/S)

Codename: Blueringer

Sun-4/15/30/40/50/60/65/75 / SS4 / SS5 / SS10
SS20 / SS600 / SS1000 / SC2000 / A11 / A12 / A14
E150 / E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500 / E10000

Options 1004 / 1014 / 1144 / 2144

501-1932
4/16MBit

Notes

  1. The minimum operating system is SunOS 4.1.
  2. Option 1144 includes TRI 4.0 for Solaris 7 64-Bit operating system.
  3. Option 2144 includes TRI 5.0 for Solaris 8.
  4. The TRI/S is not compatible with Slot-3 of the Sun-4/60/65.
  5. The SS1000 and SC2000 require TRI/S >=501-1932-03.
  6. The TRI/S <501-1932-03 was not tested with Sun4u systems.
  7. Install only one TRI/S per SS1000 or SC2000 System board.
  8. Install only one TRI/S per SBus channel on the E3x00-E6x00 I/O board.
  9. Do NOT use onboard Ethernet, SCSI, SOC, or SOC+ when TRI/S is installed in the same SBus channel on the E3x00-E6x00 I/O board.
  10. Install only one TRI/S on the E10000 I/O SBus board and do NOT install any board in the second slot.

References

  1. TRI/S Installation Guide, 801-3890.
  2. TRI/S 4.0 Installation Guide, 805-6906.
