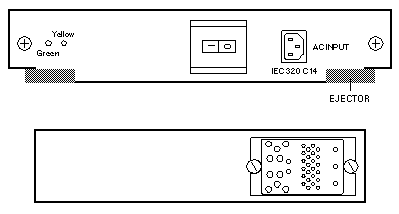

FDK PEX705-40
184 Watt Power Supply

AC Input

VOLTAGE	CURRENT	FREQUENCY
100 - 240V	12A	47 - 63HZ

DC Output

+5V	+5V	+12V	+12V	MAXIMUM CONTINUOUS
20A	5A	13A	1.5A	195 Watts

Notes

1. One 300-1307 or 300-1400 per system is supported.
2. Use 300-1301 as the redundant Peripheral Power Supply in the E3000.
3. Use 300-1358 as the redundant Peripheral Power Supply in the E3500.
4. Use Filler Panel 540-2593 when 300-1301 or 300-1400 is not installed.
5. Use Filler Panel 540-3815 when 300-1358 is not installed.
6. Fan Tray 540-2757 or 300 Watt Power/Cooling Module 300-1260 provides cooling for the 184 Watt Power Supply.
7. The 184 Watt Power Supply provides the following functions:

   AC Input power

   +5Vdc and +12Vdc peripheral tray power

   +5Vdc and +12Vdc drive precharge (non redundant)

   +3.3Vdc and +5Vdc system precharge (non redundant)

   +5Vdc redundant system power

   +12Vdc redundant power for PCM fans

   +12Vdc redundant power for E3000/E3500 Auxiliary Fan Module

   +5Vdc auxilliary power for Clock Board remote console serial port
