FDK CEX211-00
360 Watt Power Supply

Netra st A1000 / Netra st D1000

300-1428 300-1498
Type D124
Phoenix Connector
DC Input Power Supply		 Type D124
Wago Connector
DC Input Power Supply

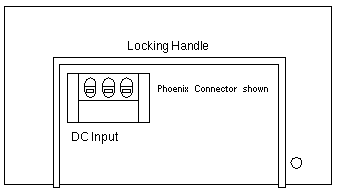

Front View

Rear View

DC Input

-40 to -75 VDC
<13.0A @ -40VDC

DC Output

+5.0V +12.0V +5.0Vpc +12.0Vpc
30.0A 23.0A 2A 2.5A

Notes

  1. Phoenix connectors require three #12AWG wires to the circuit breaker.
  2. Wago connectors require three #12AWG wires to the circuit breaker.
