Mitac X-200/P
200 Watt Power Supply

Sun Blade 100

370-4206
AC Input Power Supply
Mitac X-200/P

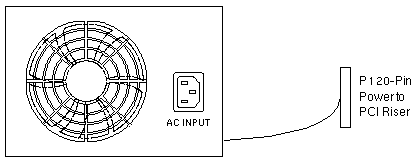

Power Harness Connector

LOCATION CONNECTOR # PINS FUNCTION
Power Supply P1 20 Riser Board Power
Riser Board J2 5 Switch/LED
Riser Board J4 3 Fan Power
Riser Board J10 4 Floppy Power
Riser Board J0502 4 Peripheral Power

AC Input

100 - 240 VAC 5.0A

DC Output

V1 V2 V3 V4 V5
+5.0V +3.3V +12.0V -12.0V +5VSB
22.0A 14.0A 6.0A 0.3A 0.72A

Sun Blade 100 Codename: Grover
