Sony 062-0412
35 Watt Power Supply

Options 540 / 550 / 552 / 558 / 559 / 660

300-1090

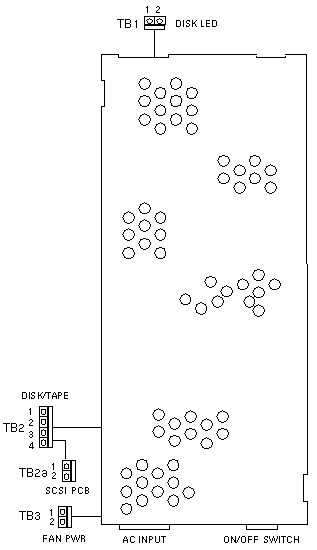

AC Input Power Supply

TB1
1 2
Blk Org
GND +5V


TB2
1 2 3 4
Blu Blk Blk Red
+12V GND GND +5V


TB2a
1 2
Blk Red
GND +5V


TB3
1 2
Blk Blu
GND 12V

DC Output
+5V +12V
2.0A 1.5A

Notes

  1. The Disk Drive LED harness part number is 530-1522.
  2. Disk Drive 370-1417 requires Power Supply 300-1090-02.
