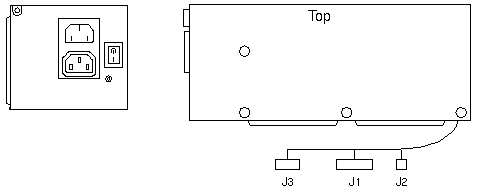

Sony APS-72
180 Watt Power Supply

J3 to System Board

PIN	FUNCTION		PIN	FUNCTION
1	+12Vdc		9	Thermal Sensor
2	Return		10	-12Vdc
3	Power On		11	Power Off
4	+5 Sense		12	+5 Sense Rtn
5	+3.3 Sense*		13	+3.3 Sense Rtn*
6	+3.0 Sense*		14	+3.0 Sense Rtn*
7	+3.0 +V Programing		15	Thermal Sensor
8	+3.0 +OVP Programing		16	Pwr On Reset

* Pins 5, 6, 13, and 14 are not used.

J1 to System Board PIN FUNCTION PIN FUNCTION 1 +5Vdc 10 +5 Rtn 2 +5Vdc 11 +5 Rtn 3 +5Vdc 12 +5 Rtn 4 +3.3Vdc 13 +3.3 Rtn 5 +3.3Vdc 14 +3.3 Rtn 6 +3.3Vdc 15 +3.3 Rtn 7 +3.0Vdc 16 +3.0 Rtn 8 +3.0Vdc 17 +3.0 Rtn 9 +3.0Vdc 18 +3.0 Rtn

J2 to Peripheral Harness PIN FUNCTION PIN FUNCTION 1 +5Vdc 4 +5Vdc 2 +5 Rtn 5 +5 Rtn 3 +12 Rtn 6 +12Vdc DC Output 1 2 3 4 5* +3.3V +5V +12V -12V +3.0V 12A 18A 5.1A 0.3A 12A * Output 5 is adjusted to 3.3Vdc.
