Sony SPS-50
50 Watt Power Supply
SPARC Xterminal 1 / SPARCstation 4
| 300-1257 |
| AC Input Power Supply |

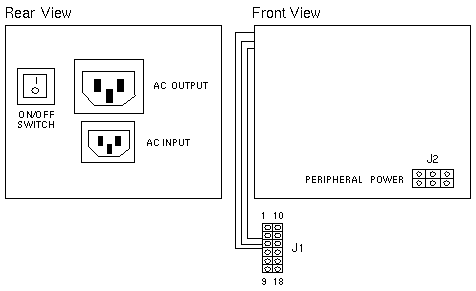

J1
| 1 |
2 |
3 |
4 |
5-6 |
7 |
8 |
9 |
10-11 |
12-13 |
14-15 |
16 |
17 |
18 |
| Blu |
Brn |
Red |
Red |
N/C |
Red |
Red |
Gry |
Blk |
N/C |
Blk |
N/C |
Vio |
Yel |
| +12 |
-12 |
+5 |
+5 |
- |
+5 |
+5 |
Poff |
GND |
- |
GND |
- |
Fan |
Pon |
J2
| 1 |
2 |
3 |
4 |
5 |
6 |
| Red |
Blk |
Blk |
Red |
Blk |
Blu |
| +5 |
GND |
GND |
+5 |
GND |
+12 |
DC Output
| +5V |
+12V |
-12V |
| 8A |
1.8A |
0.2A |
Notes
- Part number 300-1279 is used in 1.05GB disk drive Server configurations
because the 150 Watt power supply supports the power state memory
feature. Workstation configurations, regardless of disk capacity, use
50 Watt power supply 300-1257.
- The On/Off switch does not control the AC accessory outlet.
|
