Sony APS-112
660 Watt Power Supply
Ultra 80 / Sun Blade 1000/2000
| 300-1357 |
Type A119
AC Input Power Supply |

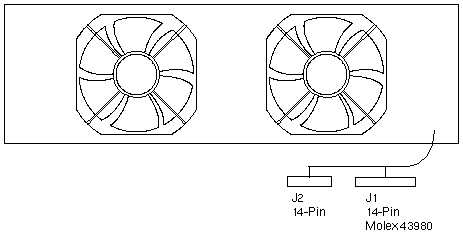

| Front View |
 |
|

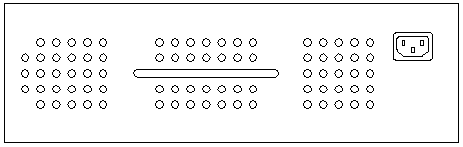

| Rear View |
 |
J1 to System Board J4107
| PIN |
FUNCTION |
|
PIN |
FUNCTION |
| 1/2 |
+3.3V |
15/16 |
+3.3V Return |
| 3/4 |
+3.3V |
17/18 |
+3.3V Return |
| 5/6 |
+3.3V |
19/20 |
+3.3V Return |
| 7/8 |
+3.3V |
21/22 |
+3.3V Return |
| 9/10 |
+5.0V |
23/24 |
+5V Return |
| 11/12 |
+5.0V |
25/26 |
+5V Return |
| 13/14 |
+5.0V |
27/28 |
+5V Return |
J2 to System Board J4106
| PIN |
FUNCTION |
|
PIN |
FUNCTION |
| 1 |
POWERON_L |
8 |
POWER_OK |
| 2 |
-12V |
9 |
PS_FAN |
| 3 |
Ground |
10 |
+5.0 |
| 4 |
Ground |
11 |
+3.3 |
| 5 |
Ground |
12 |
+12V |
| 6 |
Ground |
13 |
+12V |
| 7 |
Spare |
14 |
+5 Standby |
AC Input
DC Output
| V1 |
V2 |
V3 |
V4 |
V5 |
| +3.3V |
+5.0V |
+12.0V |
-12.0V |
+5SB |
| 90.0A |
70.0A |
7.0A |
0.4A |
0.02A |
System Codenames
| System |
Codename |
| Sun Blade 1000 |
Excalibur |
| Ultra 80 |
Quasar |
|
|
|
