Sony
420 Watt Power Supply
Netra CT 410 / Netra CT 810
| 300-1535 |
Type D148
DC Input Power Supply |

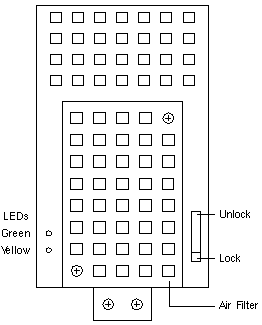

Front View
 |
|
Rear View
 |
DC Input
| -40 to -72V |
<15A at -40 |
| Nominal -48V to -60 |
|
DC Output
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
| +5.0V |
+3.3V |
+12.0V |
-12.0V |
+5.0Vsb |
+5Vpc |
+12Vpc |
| 40.0A |
40.0A |
10.5A |
1.0A |
3.0A |
3.0Apk |
3.0Apk |
Notes
- Replace the air filters every three to six months.
- Option 7221 includes four 250-1671 System Air Filters and
four 250-1672 Power Supply Air Filters.
Reference
-
Netra CT Server Service Manual, 816-2482.
|
Netra CT 410/810 Codename: Makaha |
|
|
|
