Tectrol TC64S-1327
325 Watt Power Supply

StorEdge T3

300-1453 300-1454
Type A150
AC Input Power Supply
NiCD Battery
Early Access		 Type A150
AC Input Power Supply
NiMH Battery 370-3956

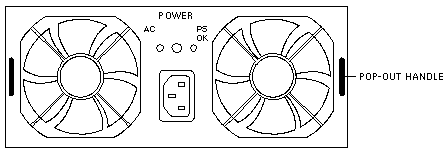

Front View

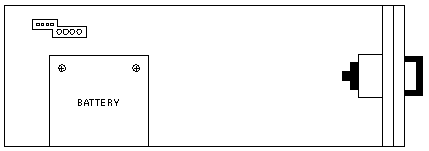

Side View

AC Input

100 - 240V
5A
50/60Hz

Notes

  1. Battery service life is two years.
  2. The T3 is configured to initiate a battery refresh cycle every 28 days.
  3. During a refresh cycle the battery is discharged, then recharged.
    Starting with firmware 1.18.00, the battery will discharge for only 6 minutes before recharging.
  4. If firmware is < 2.01.00, write-behind cache is disabled during the discharge refresh cycle.
  5. Write-behind cache is disabled if a problem is detected during refresh.
  6. Information on how to determine the correct status of the battery:
    Storage Array Battery replacements and Radiance Support types
