Zytec 22914400
269 Watt Power Supply

Options 573 / 574 / 576 / 726 / 727
Options 816 / 826 / 836 / 846 / 6054 / 6056

300-1096 300-1312

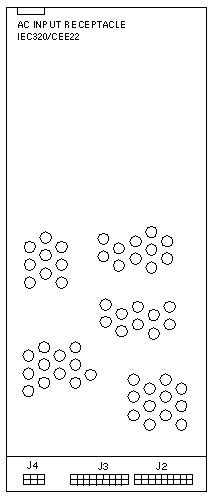

AC Input Power Supply AC Input Power Supply
Nordic Countries


J2 J3
PIN COLOR VOLTAGE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16		 Red
Red
Black
Black
Black
Black
Blue
Blue
Red
Red
Black
Black
Black
Black
Blue
Blue		 +5
+5
Gnd
Gnd
Gnd
Gnd
+12
+12
+5
+5
Gnd
Gnd
Gnd
Gnd
+12
+12


J4
PIN COLOR VOLTAGE
1
2
3
4
5
6		 Blue
Blue
Red
Black
Black
Black		 +12
+12
+5
Gnd
Gnd
Gnd

DC Output
+5.1Vdc +12Vdc +12Vdc
10.0A × 2 7.0A × 2 1.5A

Fuse

<=300-1096-04
10 Amps @ 250 Volts
300-1096-05
5 Amps @ 250 Volts

Notes

  1. Failure of Power Supply 300-1096-03 may blow fuses in 230 Volt AC Distribution Unit 300-1099.
  2. The power supply fuse change from 10A to 5A must be performed by the manufacturer because of new regulatory agency labeling.
