Zytec 22917100
650 Watt Power Supply

SPARCserver 1000

300-1103
AC Input Power Supply

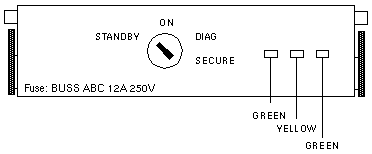

Front View
LED
STATUS
DESCRIPTION
Left On Power Supply receiving AC power
Middle On
Off
On		 Self-tests running (first 60 sec of AC power)
No hardware failures (after self-tests end)
Hardware failure (after self-tests end)
Right Off
On
Off		 Self-tests running (first 60 sec of AC power)
System running (after self-tests end)
Hardware failure (after self-tests end)

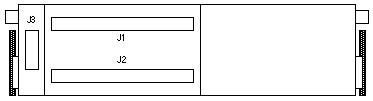

Rear View

Connector J3 Internal Wiring

PIN COLOR VOLTAGE
8
9
10
11
12
13
14		 Orange
White
N/C
N/C
Gn/Yel
Brown
Blue		 +12 Rtn
Fan Fail
N/C
N/C
AC Gnd
AC In
AC In
PIN COLOR VOLTAGE
1
2
3
4
5
6
7		 Red
Black
N/C
N/C
Gn/Yel
Brown
Blue		 +12
+12 Rtn
N/C
N/C
AC Gnd
AC In
AC In

DC Output

+5.1Vdc +1.2Vdc +12Vdc -12Vdc +12 Motor
100A 40A 2.25A 0.25A 7.5A/12A 25sec
