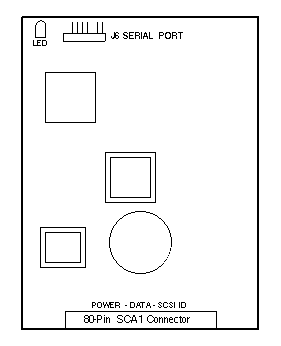

Conner CFP1060E (1.05GB)

3 1/2" 5400 RPM Single Ended Fast/Wide SCSI

SS5 / SS20 / SSA-101 / A11 / A12 / A14

Options 649 / 651 / 652 / 653 / 654 / 655 / 772 / 773

370-1822 540-2560 540-2568
1" Height
Barbados		 SS5/SS20 FRU
w Bkt 540-2570		 SSA FRU
4.2GB Disk Card FRU
w Bkt 540-2412 or 540-2764

Power

0.7 Amps @ +5Vdc
0.4 Amps @ +12Vdc
8.3 Watts

Notes

  1. The 1.05GB drive supports Tagged Queuing with Solaris 2.x.
  2. Addresses are preset to 3 and 1 in the SS4, SS5, and SS20.
  3. Addresses are preset to 0 through 4 in the SPARCstorage Array.
  4. This drive was disqualified for use in the SS4.
  5. System upgrades to A11, A12, and A14 may use this drive.

References

  1. 1.05Gbyte Disk Drive Installation Manual, 801-2207.
  2. 1.05Gbyte Disk Drive Installation Manual, 802-2702.
