Conner CP30200 (207MB)

3 1/2" 3600 RPM Single Ended SCSI
Sun-4/15/30/40/50 / SS10

Option 552

370-1417
1" Height

Power

0.410 Amps @ +5Vdc
0.215 Amps @ +12Vdc
4.63 Watts

Notes

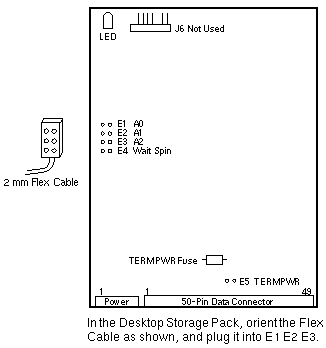

  1. Use 2 mm shunts on Jumpers E1, E2, E3, E4, and E5.
  2. The 370-1417 Disk Drive requires 35W Power Supply 300-1090-02 or 300-1105-xx, Flex Cable 530-1894, and Mounting Bracket 340-1966-04 when installed in the Desktop Storage Pack.
  3. The Conner CP30200 is not supported in the Sun-4/75. The drive does not provide adequate loading of the DC power supply.

References

  1. Desktop Storage Pack Service Manual, 800-4895.
  2. Installing Drives in a SPARCstation 2, 800-6398.
