Conner CP30540 (535MB)

3 1/2" 5400 RPM Single Ended Fast SCSI

SS1000
Options 580 / 581 / 582

370-1424
1" Height

Power

0.6 Amps @ +5Vdc
0.3 Amps @ +12Vdc
6.6 Watts

Notes

  1. The minimum operating system is SunOS 4.1.1 Rev B.
  2. The 535MB drive supports Tagged Queuing with Solaris 2.x.

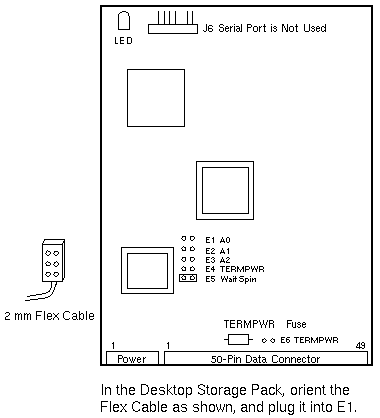

  3. Use 2 mm shunts on Jumpers E1 through E6.

Reference

535 Mbyte Disk Drive Installation Manual, 801-5402.

Conner CP30540 (535MB)

3 1/2" 5400 RPM Single Ended Fast SCSI

Sun-4/15/30/50/75 / SS10

Option 581

370-1684
1" Height

Power

0.6 Amps @ +5Vdc
0.3 Amps @ +12Vdc
6.6 Watts

Notes

  1. The minimum operating system is SunOS 4.1.1 Rev B.
  2. The 535MB drive supports Tagged Queuing with Solaris 2.x.
  3. Use 2 mm shunts on Jumpers E1 through E6.
  4. Part number 370-1684 is only a Conner drive.
  5. Part number 370-1424 is either a Seagate or Conner drive.
  6. The Seagate drive is not qualified for use in the 4/15/30/50/75.

Reference

535 Mbyte Disk Drive Installation Manual, 801-5402.
