Quantum 105S (104MB)

3 1/2" 3600 RPM Single Ended SCSI

Sun-4/60/65
Option 550

370-1200
1 5/8" Height

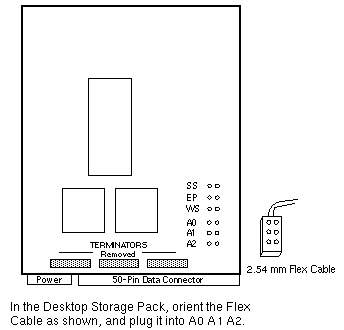

JUMPER SETTING DESCRIPTION USAGE
SS Out Spindle sync Not used
EP Out Parity Not used
WS Out Wait spin Not used
A0,A1,A2 Out Drive ID Target 0
A0 In Drive ID Target 1
A1 In Drive ID Target 2
A0,A1 In Drive ID Target 3

Power

0.7 Amps @ +5Vdc
0.5 Amps @ +12Vdc
9.5 Watts

Reference

Sun-3/80 Internal Disk Drive Installation Manual, 813-1064.
