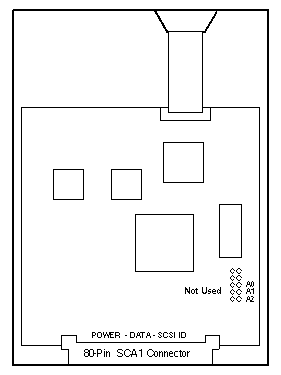

Quantum 1080S (1.05GB)

3 1/2" 5400 RPM Single Ended Fast SCSI

SS4 / SS5 / SS20 / A11 / A12 / A14
Option 5104

370-2168 540-2560 540-2765 540-2875
1" Height
Fireball		 SS5/SS20 FRU
w Bkt 540-2570		 A11 FRU
w R Bkt 330-1951
w L Bkt 330-1952		 SS4 FRU
w Bkt 540-2570

Notes

  1. The 1.05GB drive supports Tagged Queuing with Solaris 2.x.
  2. Addresses are preset to 3 and 1 in the SS5 and SS20.
  3. Addresses are preset to 0 and 1 in the A11, A12, and A14.
  4. This drive does not support wide SCSI transfers.
  5. The SS4 requires Standoff 240-2308.
  6. Standoff 240-2308 is only on SS4 Model 110 CPU 501-3134.
  7. This drive is not used in the SPARCstorage UniPack.
  8. This drive is not used in the SPARCstorage Array Model 100.
  9. System upgrades to A12 and A14 may use this drive.

Reference

1.05Gbyte Disk Drive Installation Manual, 802-2702.
