Seagate ST15230WC (4.2GB)
3 1/2" 5400 RPM Single Ended Fast/Wide SCSI
Options 5203 / 5204
| 370-2152 |
1 5/8" Height
Hawk-4 |
Power
- 0.85 Amps @ +5Vdc
- 0.62 Amps @ +12Vdc
- 11.7 Watts
Notes
- The minimum operating system is Solaris 1.1.2 or 2.3.
- The Solaris 1.1.2 maximum partition size is 2.2GB, 1940 cylinders,
or 4190400 blocks.
- Solaris 1.1.2 requires editing format.dat and building a new kernel.

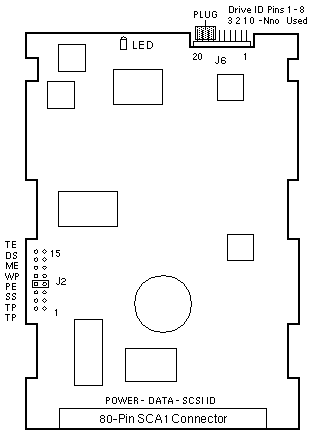

- Using the smaller diameter J2 jumpers on J6 will distort the jumper.
- Do NOT install jumpers on J6 Pins 13 -20.
Reference
4.2 Gbyte Disk Drive Product Note, 802-4495.
Seagate ST15230WC (4.2GB)
3 1/2" 5400 RPM Single Ended Fast/Wide SCSI
Options 5203 / 5204 / 5225 / 5501 / 5502 / 5503
6503 / 6504 / 6506 / 6530 / 6531
| 370-2286 |
540-2784 |
540-2815 |
1 5/8" Height
Hawk-4 |
RSM FRU
w Bkt 370-2304 |
MultiPack FRU
w R Bkt 330-1951
W L Bkt 330-1952 |
Power
- 0.85 Amps @ +5Vdc
- 0.62 Amps @ +12Vdc
- 11.7 Watts
Notes
- The minimum operating system is Solaris 1.1.2 or 2.3.
- The Solaris 1.1.2 maximum partition size is 2.2GB, 1940 cylinders,
or 4190400 blocks.
- Solaris 1.1.2 requires editing format.dat and building a new kernel.
- Using the smaller diameter J2 jumpers on J6 will distort the jumper.
- Do NOT install jumpers on J6 Pins 13 -20.
Reference
-
4.2 Gbyte 5400 rpm Disk Drive Specifications, 802-5302.
|
