Seagate ST19171FC (9.1GB)

3 1/2" 7200 RPM FC-AL

E3500 / StorEdge A5000

Options 6708 / 6709

370-2875 370-3602 540-3249 540-3852
1 5/8" Height
Barracuda 9FC
170-2 or 170-3 ASIC
Assy 540-3249		 1 5/8" Height
Barracuda 9FC
170-3 ASIC
Assy 540-3852		 Spud Bracket FRU
w 1.6" Bkt 540-3025
w Plate 340-3462		 Spud Bracket FRU
w 1 5/8" Bkt 540-3025
w Barrier 340-3462
w Plate 340-4288 or 340-6640
or Plate 340-5928 or 340-7269

Notes

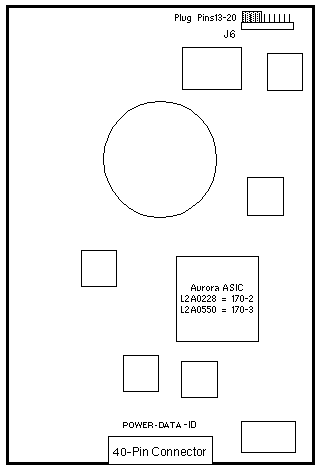

  1. The 370-2875 was manufactured with an Aurora 170-2 or 170-3 ASIC.
  2. The 370-3602 was only manufactured with an Aurora 170-3 ASIC.
  3. The E3500 cannot boot from CD-ROM if there is one drive on the fibre channel loop and that drive has an Aurora 170-2 ASIC.
  4. 540-3852 includes plate 340-3462, 340-6640, 340-4288, 340-5928, or 340-7269.

Reference

9 Gbyte 7200 rpm Disk Drive Specifications, 805-1679.
