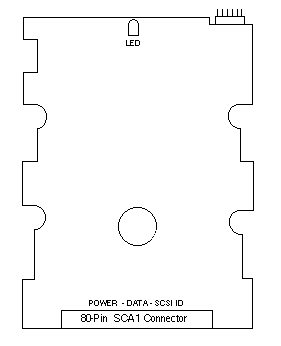

Seagate ST3500NC (535MB)

3 1/2" 5400 RPM Single Ended Fast SCSI

Options 589 / 597

370-1550 540-2403
1" Height
ST3600		 SSA FRU
2.1GB Disk Card FRU
w Bkt 540-2413

Notes

  1. The 535MB drive supports Tagged Queuing with Solaris 2.x.
  2. The addresses are preset to 0, 1, 2, and 3 on Disk Card 501-2066.
  3. Do NOT daisy chain System Board 0 to the disk card if disk drives are installed on the internal SS1000 SCSI Bus.
  4. The disk card mounting brackets are not interchangeable between the Seagate and Conner disk drives.

References

  1. 2.1-Gbyte Disk Card Installation Manual, 801-2196.
  2. 535 MByte Disk Drive Installation Manual, 801-5402.
  3. 535 MByte Disk Drive Installation Manual, 801-6559.
