Seagate ST39140A (9.1GB)

3 1/2" 7200 RPM Ultra ATA-4

A21 / A22
Options 5226 / 5236

370-3693
Medalist Pro 9140

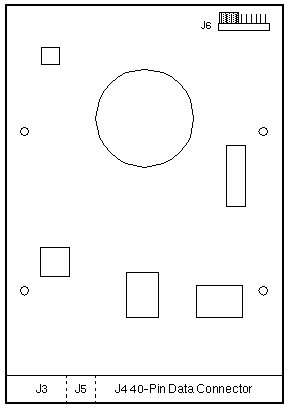

Bottom View

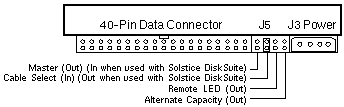

End View

Notes

  1. Either a floppy or a front disk drive can be installed in the Ultra 5.
  2. The Ultra 5 front disk mounting bracket replaces the floppy bracket.
  3. The Ultra 5 front disk mounting bracket has no Sun part number.
  4. The Ultra 5 front disk mounting bracket is included with Option 5236.
  5. The Ultra 10 primary/rear drive requires Mounting Bracket 370-3721.

References

  1. Ultra 5/10 Service Manual, 805-0423.
  2. Ultra 5 Service Manual, 805-7763.
  3. Ultra 10 Service Manual, 805-7764.
  4. CD-ROM and Hard Drive Installation Guide, 805-3085.
  5. CD-ROM and Hard Drive Installation Guide, 805-7115.
