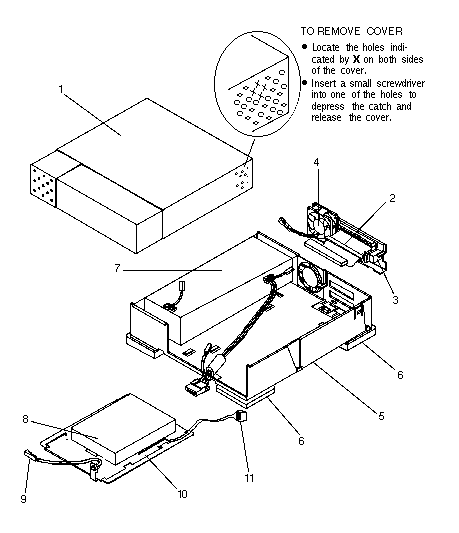

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-1777 |
Disk Drive Cover Assembly |
2
3
3
4
NS
NS |
540-1978
150-1557
150-2049
540-1802
150-1174
340-2839 |
Fan/SCSI Connector/Address Select Assembly
 Address Select Switch (obsolete)
Address Select Switch
Fan Assembly
2A Subminiature Fuse
Fan EMI Gasket |
5
6 |
540-1773
330-1214 |
Base Assembly
Rubber Foot |
| 7 |
300-1090 |
35 Watt Power Supply (obsolete) 1 |
| 7 |
300-1105 |
44 Watt Power Supply 1 |
| 8 |
370-1417 |
207MB Disk Drive, Conner CP30200 |
| 9 |
530-1522 |
Power Indicator LED Cable |
| 10 |
340-1966 |
Disk Drive Bracket 2 |
| 11 |
530-1894 |
Address Select Switch Cable, 2 mm Pin Spacing 3 |
| NS |
240-1141 |
#6-32 × 1/4"Disk Drive Mounting Screw |
| NS |
150-1785 |
Single-Ended Active Terminator, HD50 |
| NS |
530-1792 |
External SCSI Cable, HD50 to DD-50SA, 2.0M |
| NS |
530-1793 |
External SCSI Cable, HD50 to HD50, 80 cm |
| NS |
530-1829 |
External SCSI Cable, HD50 to DD-50SA, 1.0M |
| NS |
530-1836 |
External SCSI Cable, HD50 to HD50, 2.0M |
| NS |
530-1852 |
External SCSI Cable, HD50 to HD50, 4.0M |
| NS |
800-4895 |
Desktop Storage Pack Field Service Manual |
