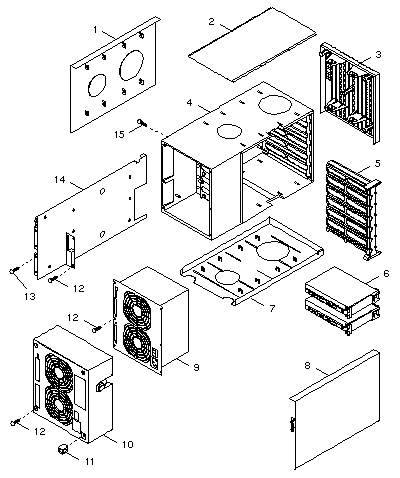

| CODE |
PART # |
DESCRIPTION |
| 1 |
330-1957 |
Side Cover |
| 2 |
330-1956 |
Top Cover |
| 3 |
540-2772 |
Front Cover Assembly |
| 4 |
540-3397 |
Chassis Assembly (replaced 540-2771) |
| 5 |
540-3400 |
Spacer Assembly (replaced 540-2748) |
6
-
- |
540-2730
370-2040
370-1956 |
2.1GB 7200 RPM Disk Drive Assembly/FRU
 2.1GB Disk Drive, Seagate ST32550WC
2.1GB Disk Drive, IBM DFHS-32160 (disqualified) |
6
-
- |
540-2936
370-2808
370-2365 |
2.1GB 7200 RPM Disk Drive Assembly/FRU
2.1GB Disk Drive, Quantum VK22J05
2.1GB Disk Drive, Seagate ST32171WC |
6
-
-
-
- |
540-2938
370-2367
370-2809
370-3403
370-3412 |
4.2GB 7200 RPM Disk Drive Assembly/FRU
4.2GB Disk Drive, Seagate ST34371WC
4.2GB Disk Drive, Quantum VK45J05
4.2GB Disk Drive, IBM DDRS-34560
4.2GB Disk Drive, Fujitsu MAB3045SC |
| 7 |
540-2787 |
Base Assembly |
| 8 |
540-2751 |
Door Assembly |
9
9 |
300-1283
300-1330 |
185 Watt Power Supply
185 Watt Power Supply |
| 10 |
540-2792 |
Rear Cover Assembly |
| 11 |
540-2789 |
Lockbox |
| 12 |
240-2283 |
M3 × 8 mm Screw |
| 13 |
240-2180 |
#4-40 Jack Screw |
| 14 |
501-2899 |
12-Slot Backplane |
| 15 |
240-2282 |
M3 × 14 mm Screw |
| NS |
150-2267 |
Forced Perfect Terminator, HD68 |
| NS |
330-1966 |
Key |
| NS |
530-1884 |
External SCSI Cable, HD68 to HD68, 80 cm |
| NS |
540-2749 |
Cover Kit/FRU with Front, Top, Side, and Door |
|
802-4430 |
SPARCstorage MultiPack Service Manual |
|
805-1667 |
SPARCstorage MultiPack Service Manual |
