| CODE |
PART # |
DESCRIPTION |
-
- |
599-2229
599-2325 |
9.1GB 7200 RPM Disk StorEdge UniPack
9.1GB 10000 RPM Disk StorEdge UniPack |
-
-

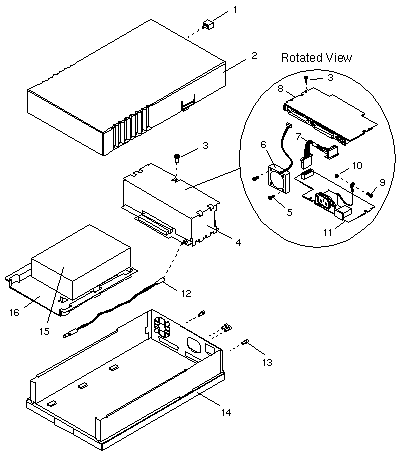

1
2
3
4
5
5
6
7
8
9
10
11
12
13
14 |
595-4726
599-2237
540-1982
540-3731
240-1530
540-3732
240-2246
240-2294
370-1986
530-2180
501-4823
240-1434
240-1373
300-1282
530-2183
240-1926
540-3730 |
Disk Drive Enclosure FRU without Disk Drive
 Disk Drive Enclosure without Disk Drive
Lockbox
Disk Drive Cover Assembly
M3 × 6 mm Screw
Disk Drive Power Supply Assembly
 M3 × 25 mm Screw (obsolete)
M3 × 25 mm Pan-Head Screw
Fan
Disk Drive DC Power Cable
Disk Drive Ultra SCSI Interface Card
M4 × 10 mm Screw
M4 Nut
30 Watt Power Supply
LED Cable
#4-40M/2-56F Jackscrew
Base Assembly
|
15
16
-
-
-
-
-
- |
540-3734
340-3222
370-3404
370-3413
370-3595
390-0004
390-0005
390-0007 |
9.1GB 7200 RPM Disk Drive Assembly
Mounting Bracket
9.1GB Disk, IBM DDRS-39130
(removed by WO_12576)
9.1GB Disk Drive, Fujitsu MAB3091SC
9.1GB Disk Drive, Seagate ST39173WC
9.1GB Disk Drive, Fujitsu MAE3091LC
9.1GB Disk Drive, Fujitsu MAG3091LC
9.1GB Disk Drive, IBM DNES-309170 |
15
16
- |
540-4304
340-3222
390-0009 |
9.1GB 10000 RPM Disk Drive Assembly
Mounting Bracket
9.1GB Disk Drive, Seagate ST39103LC |
| NS |
261-5678 |
Sun Logo |
| NS |
530-2383 |
External SCSI Cable, HD68 to HD68, 80 cm |
|
802-3229
805-3941 |
SPARCstorage UniPack Hard Drive Replacement
StorEdge UniPack User's Guide |
