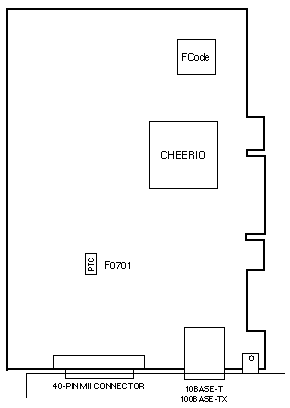

SunFastEthernet (FE/P)

Codename: Freshchoice Lite

A16 / A20 / A21 / A22 / A23 / A25 / A26
A27 / A28 / A29 / A33 / A34 / A41
Netra T1 / Netra 20 / Netra ft 1800
Sun Fire V120 / Netra 120
Netra t 1100/1120/1125 / Netra t 1400/1405
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500
Sun Fire 4800 / 4810 / 6800
Sun Fire V480 / Sun Fire V880

Options 1033 / 6934

501-4359 501-5019 540-3981
3.3/5V 32Bit 33MHz 3.3/5V 32Bit 33MHz Netra ft 1800 FRU
w 501-4359 or 501-5019

Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
  2. Auto-negotiation is used to select operating mode and speed.
  3. The address of the onboard MII transceiver is 1.
  4. Set the external MII transceiver to an address other than 1 to avoid an address conflict with the onboard transceiver. Refer to BugID 4062714.

Reference

  1. SunFastEthernet PCI Installation and Users Guide, 805-1759.
  2. SunFastEthernet PCI Adapter Product Note, 805-2715.
