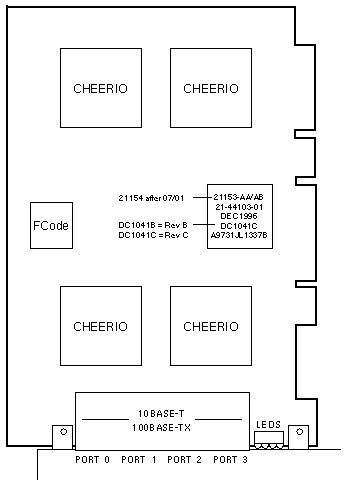

Sun Quad FastEthernet (QFE/P)

Codename: Gumby

A16 / A20 / A21 / A22 / A23 / A25 / A26
A27 / A28 / A29 / A33 / A34 / A35 / A36 / A41
Netra t1 / Netra T1 / Netra 20
Sun Fire V120 / Netra 120
Netra t 1100/1120/1125 / Netra t 1400/1405 / Netra ft 1800
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500
Sun Fire 4800 / 4810 / 6800
Sun Fire V480 / Sun Fire V880
Sun Fire 12K / Sun Fire 15K

Options 1034 / 6943

501-4366 501-5406 540-4094
3.3/5V 64Bit 33MHz 3.3/5V 64Bit 33MHz Netra ft 1800 FRU

Notes

  1. The minimum OS is Solaris 2.5.1 HW: 4/97 and Quad FastEthernet 2.0.
  2. Solaris 2.6 requires QuadFastEthernet 2.1.
  3. The Ultra 30, Netra T1, and Sun Blade 100 are not compatible with DC21153 Rev A or B.
    See BugIDs 4094903, 4432431, and 4615897.
  4. One CPU per port is recommended for maximum throughput.
  5. Two CPUs per QFE/P are recommended for >=200MHz systems.
  6. Auto-negotiation is used to select operating mode and speed.

Reference

Sun Quad FastEthernet PCI Installation and Users Guide, 805-1797.
