SuperStack II Entry Hub

Options 2721 / 2722

370-3795
3Com 3C16440
10BASE-T Ethernet

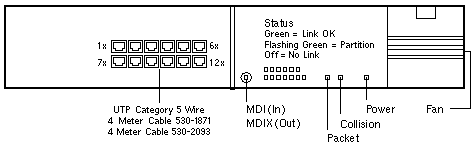

Front View

Rear View

Notes

  1. Option 2721 includes Control Board 501-4839 and AC Cord 530-2197.
  2. Option 2722 includes Control Board 501-5494 and AC Cord 530-2197.
  3. The MDI/MDIX Switch affects the operation of Port 12.
  4. Set the switch to MDIX (Out) when connecting to a workstation.
  5. Set the switch to MDI (In) when connecting to a 10BASE-T repeater.
  6. The Redundant Power System (RPS) option is available from 3Com.

Reference

SuperStack II Entry Hub User Guide, DUA1644-0AAA01.
