TP4 Hub

Option 2720

370-3325 540-3584
3Com 3C16704 FRU Assembly

Front View

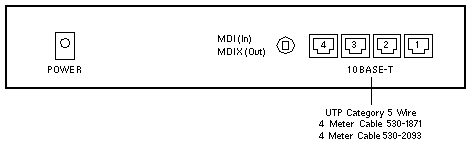

Rear View

Notes

  1. The MDI/MDIX Switch affects the operation of Port 4.
  2. Set Switch 4 to MDIX (Out) when connecting to a workstation.
  3. Set Switch 4 to MDI (In) when connecting to an OfficeConnect Hub.
  4. FRU 540-3584 includes the following AC-DC power adapters:
    PRIMARY COUNTRY PLUG TYPE AC INPUT DC OUTPUT
    Australia AS3112 240V 0.2A 14V 0.8A
    Europe CEE 7/16 230V 0.2A 14V 0.8A
    Japan JIS 8303 100V 0.2A 13V 0.8A
    South Africa BS546 220V 0.2A 14V 0.8A
    United Kingdom BS1363 240V 0.2A 14V 0.8A
    United States NEMA 1-15 120V 0.2A 13V 0.8A

Reference

OfficeConnect Hub TP4 User Guide, DUA1670-3AAA01.
