StorEdge Network 2GB FC Switch-16
Option SG-XSW16-2GB
| 370-5269 |
540-5404 |
| QLogic SANbox2A-16 |
FRU Assembly |
|

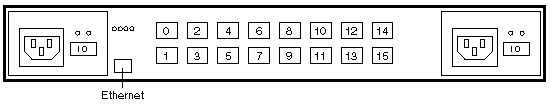

Front View
|
|
|

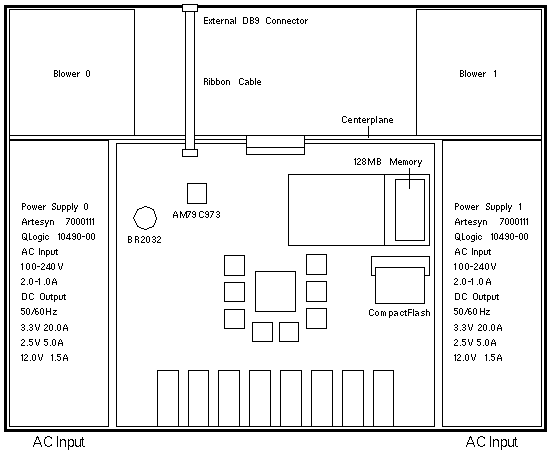

Top View with Cover Removed
|
|
LC-SC Fibre Cables
| OPTION |
FRU PART # |
DESCRIPTION |
| X9721A |
537-1036 |
0.4 Meter LC-SC Fibre Channel Cable |
| X9722A |
537-1035 |
2 Meter LC-SC Fibre Channel Cable |
| X9723A |
537-1033 |
5 Meter LC-SC Fibre Channel Cable |
| X9724A |
537-1034 |
15 Meter LC-SC Fibre Channel Cable |
SC-SC Fibre Cables
| OPTION |
FRU PART # |
DESCRIPTION |
| X9720A |
130-4723 |
SC-SC Fibre Channel Cable Coupler |
| X9732A |
537-1041 |
CBL, 2M, FC, LC-LC, MM,1.6 PLENUM |
| X9733A |
537-1042 |
CBL, 5M, FC, LC-LC, MM,1.6 PLENUM |
| X9734A |
537-1043 |
CBL, 15M, FC, LC-LC, MM,1.6 PLENUM |
Notes
- SFPs (Small Formfactor Pluggables) are not included with the switch.
- Short Wave SFP - Option XSFP-SW-2GB, FRU 370-5211
- Long Wave SFP - Option XSFP-LW-2GB, FRU 370-5212
References
- SAN 4.0 Release Guide
to Documentation, 816-4470.
-
Sun StorEdge[tm] SAN 4.0 Release Field Troubleshooting Guide, 816-6580
- SANbox2-16 Installation and Users Manual, 875-3263.
- SANbox 8/16 Switch Management Users Manual, 875-3143.
|
