2-Slot FC-AL Disk Backplane

Sun Fire V480

501-5822

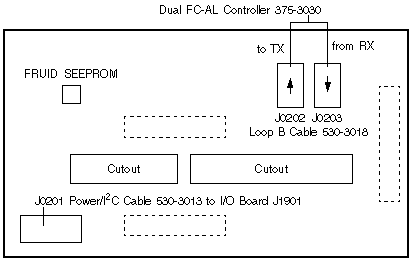

Front View

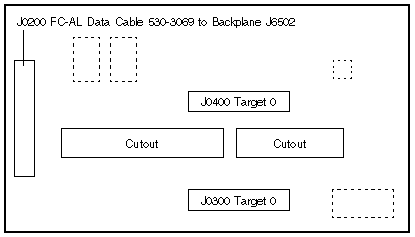

Rear View

Notes

  1. Connectors J0200, J0300, and J0400 are pressfit.
  2. J0202/J0203 are described as To Disks/From Disks in 816-0907.
  3. J0202/J0203 are silkscreened From Disks/To Disks on the board.

References

  1. Sun Fire V480 Product Notes, 816-0905.
  2. Sun Fire V480 Administration Guide, 816-0904.
  3. Sun Fire V480 Parts Installation and Removal Guide, 816-0907.
