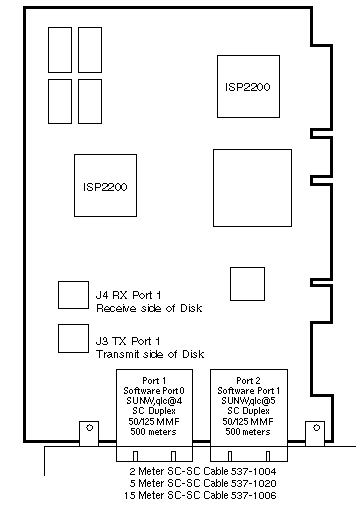

PCI Dual FC Network Adapter+

Codename: Crystal+

A23 / A25 / A26 / A27 / A28 / A29 / A33 / A34 / A35
E3x00 / E4x00 / E5x00 / E6x00 / E10000
Sun Fire 4800 / 4810 / 6800 / Netra 20
Sun Fire V480 / Sun Fire V880
Sun Fire 12K / Sun Fire 15K
Sun Fire V120 / Netra 120

Option 6727

375-3030
QLogic QLA2212F
3.3/5V 32/64Bit 33/66MHz


LC-SC Fibre Cables

OPTION FRU PART # DESCRIPTION
X9721A 537-1036 0.4 Meter LC-SC Fibre Channel Cable
X9722A 537-1035 2 Meter LC-SC Fibre Channel Cable
X9723A 537-1033 5 Meter LC-SC Fibre Channel Cable
X9724A 537-1034 15 Meter LC-SC Fibre Channel Cable

SC-SC Fibre Cables

OPTION FRU PART # DESCRIPTION
X973A 537-1004 2 Meter SC-SC Fibre Channel Cable
X978A 537-1006 15 Meter SC-SC Fibre Channel Cable, 50/125 Multimode
X9715A 537-1020 5 Meter SC-SC Fibre Channel Cable
X9720A 130-4723 SC-SC Fibre Channel Cable Coupler

Note:

The minimum OS is Solaris 7 11/99 or Solaris 8 6/00.

Sun Fire V880 Notes

  1. For optimal performance, install this board in Slots 7 and 8.
  2. Do Not use external Port 1 if internal Port 1 is connected to Loop-B.
  3. Do Not connect internal Port 1 to Loop-A.

References

  1. Host Adapter Release Notes, 816-0261.
  2. Host Adapter Installation Manual, 806-4199.
