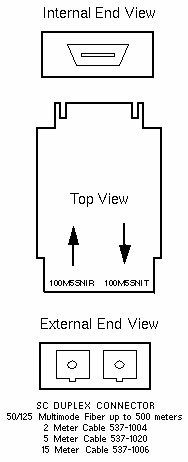

FC-AL SW-GBIC

E3500 / FC100/S / FC100/P

Option 6731

370-2303-02 370-2303-03 370-3975 370-4379
830-870 nm
Option 6731
IBM 21H9750
Vixel 00550037-904
CD-ROM Laser		 830-870 nm
Option 6731
IBM 21H9870
Vixel 00651050-70
VCSEL Laser		 830-870 nm
No Option
IBM 21H9750
Relabeled 370-2303-02
CD-ROM Laser		 830-870 nm
No Option
Finisar FTR-8519
A5x00 Only
VCSEL Laser


Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware 8/97.
  2. GBIC 370-4379 is factory installed in the A5x000.
  3. GBIC 370-4379 is not available as a FRU.
  4. GBIC 370-4379 is not compatible with the FC100/S or FC100/P. The latch design makes the device difficult to remove.

References

  1. GBIC Installation and Removal, 805-3885.
  2. FC-AL SBus Card Installation/Service Manual, 802-7572.
  3. A5000 Installation/Service Manual, 802-7573.
  4. PCI FC100 Installation Manual, 805-3682.
