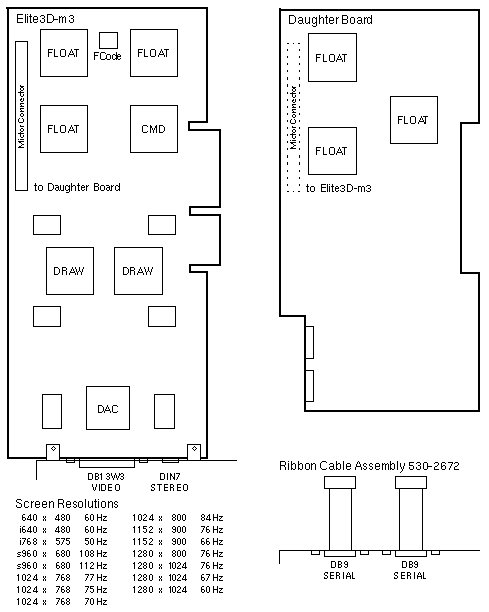

Elite3D-m3 / Elite3D-m6 / AFB Series 1

24-Bit Color Frame Buffer

A16 / A22 / A23 / A27

Options 3664 / 3665

501-4860 501-5268 501-5201 501-5484
Elite3D-m3/FRU Elite3D-m3/FRU Elite3D-m3 Elite3D-m3/FRU
540-3623 540-3902 501-5058
Elite3D-m6/FRU
501-4860 + 501-5058
Elite3D-m6/FRU
501-5201 + 501-5058
Daughter Board


Operating System Notes

  1. The minimum OS is Solaris 2.5.1 HW: 11/97 or Solaris 2.6 HW: 3/98.
  2. The Elite3D Supplemental CD for Solaris 2.5.1 is required.
  3. Elite3D device drivers are bundled in Solaris 2.6 Hardware: 3/98.

Board Notes

  1. Do NOT assemble or disassemble an Elite3D-m6. The Mictor connector can be damaged during assembly and disassembly.
  2. Elite3D-m6 assembly 540-3623 includes 501-4860 and 501-5058.
  3. Elite3D-m6 assembly 540-3902 includes 501-5201 and 501-5058.
  4. Elite3D-m3 501-5484 includes 501-5201 and barcode label 262-5463.
  5. Elite3D-m3 501-5268 includes 501-4860 and barcode label 262-5565.

Ultra 10 Compatibility Notes

  1. Elite3D-m3 is not compatible with 300MHz Module <=501-4379-05.
  2. Elite3D-m3 is not compatible with 300MHz Module <=501-5040-02.

References

  1. afbconfig (1m) and afb (7D) manual pages.
  2. Elite3D Installation Guide, 805-4391.


Elite3D-m3 / Elite3D-m6 / AFB Series 2

24-Bit Color Frame Buffer

A16 / A22 / A23 / A27 / A28 / A29

Options 3677 / 3679

501-5574 501-5575 540-4313 501-5058
Elite3D-m3/FRU
Energy Star
Elite3D-m3
Energy Star
Elite3D-m6/FRU
501-5575 + 501-5058
Daughter Board


Operating System Notes

  1. The minimum OS is Solaris 2.5.1 HW: 11/97 or Solaris 2.6 HW: 3/98.
  2. The Elite3D Supplemental CD for Solaris 2.5.1 is required.
  3. Elite3D device drivers are bundled in Solaris 2.6 Hardware: 3/98.

Board Notes

  1. Do NOT assemble or disassemble an Elite3D-m6. The Mictor connector can be damaged during assembly and disassembly.
  2. Elite3D-m6 assembly 540-3623 includes 501-4860 and 501-5058.
  3. Elite3D-m6 assembly 540-3902 includes 501-5201 and 501-5058.
  4. Elite3D-m3 501-5484 includes 501-5201 and barcode label 262-5463.
  5. Elite3D-m3 501-5268 includes 501-4860 and barcode label 262-5565.

Ultra 10 Compatibility Notes

  1. Elite3D-m3 is not compatible with 300MHz Module <=501-4379-05.
  2. Elite3D-m3 is not compatible with 300MHz Module <=501-5040-02.

References

  1. afbconfig (1m) and afb (7D) manual pages.
  2. Elite3D Installation Guide, 805-4391.

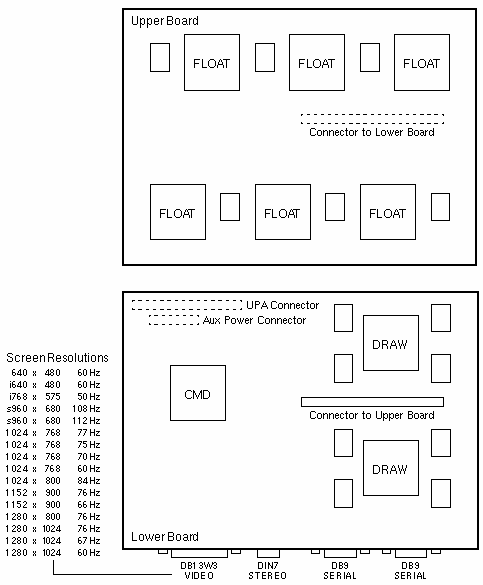

Elite3D-m6 / AFB

24-Bit Color Frame Buffer

A14 / A20
E3000 / E4000 / E5000 / E6000 / E3500 / E4500 / E5500 / E6500

Options 3666 / 3667

540-3058 540-3979 501-4231 501-4232
AFB Assembly AFB Assembly Lower Board Upper Board


Notes

  1. The minimum OS is Solaris 2.5.1 HW: 11/97 or Solaris 2.6 HW: 3/98.
  2. The Elite3D Supplemental CD for Solaris 2.5.1 is required.
  3. Elite3D device drivers are bundled in Solaris 2.6 Hardware: 3/98.
  4. Use Y-Cable 180-1910 to drive multiple monitors from the stereo port.

Compatibility Notes

  1. Lower board <=501-4231-06 is not compatible with the A20.
  2. Assembly <=540-3058-06 is not compatible with the A20.
  3. Assembly 540-3058 is not compatible with the E3x00-E6x00.

References

  1. afbconfig (1m) and afb (7D) manual pages.
  2. Elite3D Installation Guide, 805-3321.
  3. Elite3D Installation on Sun Enterprise Servers, 805-6938.

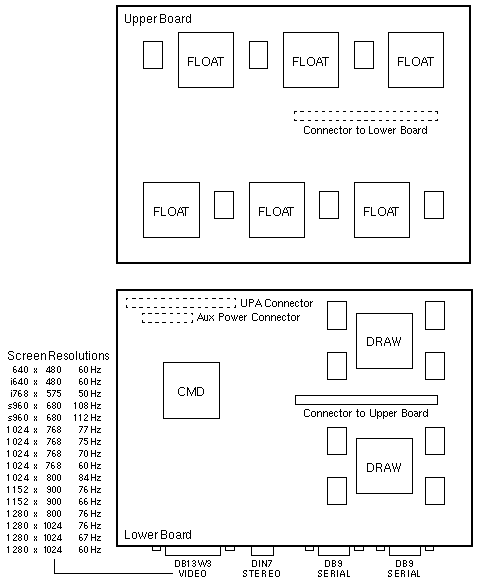

Elite3D-m6 / AFB

24-Bit Color Frame Buffer

A14 / A20
E3000 / E4000 / E5000 / E6000 / E3500 / E4500 / E5500 / E6500

Option 3680

540-4335 501-5608 501-4232
AFB Assembly Lower Board Upper Board


Notes

  1. The minimum OS is Solaris 2.5.1 HW: 11/97 or Solaris 2.6 HW: 3/98.
  2. The Elite3D Supplemental CD for Solaris 2.5.1 is required.
  3. Elite3D device drivers are bundled in Solaris 2.6 Hardware: 3/98.
  4. Use Y-Cable 180-1910 to drive multiple monitors from the stereo port.

References

  1. afbconfig (1m) and afb (7D) manual pages.
  2. Elite3D Installation Guide, 805-3321.
  3. Elite3D Installation on Sun Enterprise Servers, 805-6938.
