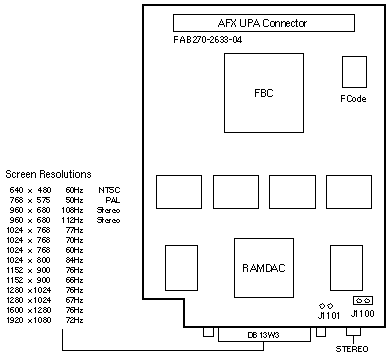

Creator3D Series 1 (FFB)

24-Bit Color Frame Buffer

A12 / A14
Option 3652

501-2633
67MHz Clock



UNIX ID: /dev/ffb0

Notes

  1. Revisions <=501-2633-05 are not compatible with the E3x00, E4x00, E5x00, or E6x00. Use 501-2633-06 or 501-4126.
  2. The FFB has a combined framebuffer and graphics clock.

References

  1. ffbconfig (1M) and ffb (7D) manual pages.
  2. Creator Installation Guide, 802-6682.
  3. Creator Installation Guide, 802-7731.
  4. Platform Notes: SMCC Frame Buffers, 802-3755.
  5. Platform Notes: SMCC Frame Buffers, 802-5011.

Creator3D Series 1 (FFB)

24-Bit Color Frame Buffer

A12 / A14 / E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Option 3652

501-3129
75MHz Clock



UNIX ID: /dev/ffb0

Notes

  1. The 501-3129 was released in May 1996 without an option number.
  2. The 501-3129 was assigned Option number 3652 in November 1996.
  3. The I/O Graphics board requires iPOST 3.2.6. Refer to BugID 1256295.
  4. The FFB has a combined framebuffer and graphics clock.

References

  1. ffbconfig (1M) and ffb (7D) manual pages.
  2. Creator Installation Guide, 802-6682.
  3. Creator Installation Guide, 802-7731.
  4. Platform Notes: SMCC Frame Buffers, 802-3755.
  5. Platform Notes: SMCC Frame Buffers, 802-5011.

Creator3D Series 1 (FFB)

24-Bit Color Frame Buffer

A12 / A14 / E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Options 3652 / 3654

501-4126
67MHz Clock



UNIX ID: /dev/ffb0

Note

The FFB has a combined framebuffer and graphics clock.

References

  1. ffbconfig (1M) and ffb (7D) manual pages.
  2. Creator Installation Guide, 802-6682.
  3. Creator Installation Guide, 802-7731.
  4. Platform Notes: SMCC Frame Buffers, 802-3755.
  5. Platform Notes: SMCC Frame Buffers, 802-5011.
